Large format scanner – SmartLF SC 36 xpress series

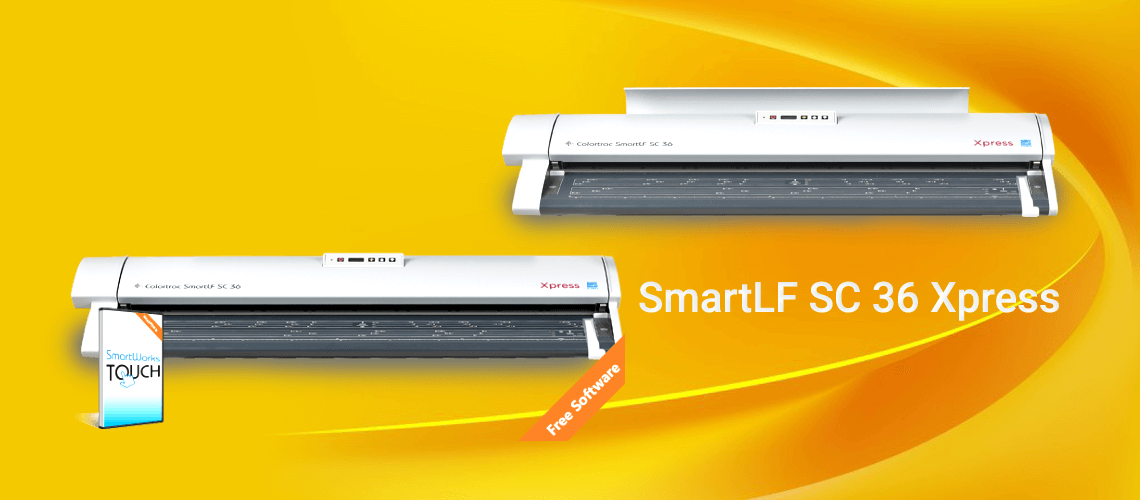

Classic: SmartLF SC 36 Xpress

Nominated for the 2016 Wide Format & Signage Scanner of the Year.SmartLF SC gives you super fast results combined with high quality imaging. Use your SmartLF SC to produce great scans or copies of wide format maps, site plans, engineering drawings, blueprints, architectural renderings and many other technical documents.

The ‘Xpress’ difference
ColortracSmartLF SC Xpress Series is now even faster for everyday scanning tasks. At 200 dpi the paper speed has been doubled which means that an A0 / E size document scanned in 24-bit colour now scans at a full 12 inches per second, very nearly the same speed as a monochrome scan. At 300 dpi the speed has also been doubled. Scan speeds at higher dpis are not affected.This performance requires a USB3 enabled computer connection. For USB2 connections these speeds will be halved.

SingleSensor Technology
The SmartLF SC 36 Xpress is an addition to our expanding range of large format scanners that use our SingleSensor (Patent pending) digital imaging technology. The Colortrac invention combines a full document width of individual contact image sensors (CIS) in a robust single-piece unit, enabling a significantly higher optical quality and dramatic increase in pixel alignment stability. The SmartLF SC 36 scanner has 43,200 short image-path sensors that are illuminated by a custom designed bi-directional LED lighting arrangement that also provide “instant-on” low energy illumination making the SmartLF SC 36 Xpress.

Larger Document Staging Area
The new design incorporates a larger face-up staging platform to make loading documents into the scanner faster and easier. SmartLF SC 36 Xpress is the first Colortrac scanner designed specifically to auto-size documents face-up in the centre of the scanner, a change which helps the operator to see what they are scanning and also to load creased documents more effectively. For documents conforming to standard drawing sheet sizes (manual mode) the scanner can accept media side & center using SmartWorks Pro or at the side only using the SmartWorks TOUCH software.

Dynamic Document Feed
The SmartLF SC 36 Xpress SingleSensor allows the use of a simplified arrangement of rollers to ensure that the document always stays in contact with the optics. Driven rollers either side of the optical path and an active soft pressure roller running the full length of the SingleSensor allow the scanner to dynamically respond and actively work against the optical disturbances caused by document lift and paper creasing. This technology ensures that delicate or fragile media such as newspaper and old blueprints can be safely and accurately scanned without problem.

SuperSpeed PC InterfaceThe SmartLF SC Xpress large format scanner series are the first scanners to incorporate the new SuperSpeed USB 3.0 digital interface. With a dramatic x10 increase in the internal data transfer rates, the new USB 3.0 interface works at up to 5Gb/sec. In terms of speed of scan data saved to the computer this represents more than double the previous rate of 28MB/sec (USB2) to 65 -85 MB/sec for USB3 depending on computer manufacturer. SuperSpeed USB 3.0 is unique to Colortrac and allows the SmartLF SC 36 XPress scanner to work at full speed using higher resolutions on wider documents than ever before.

Features:

  • 200% improvement of scan speeds at 200 dpi and 300 dpi
  • Single Sensor: Unique Colortrac CIS modules
  • FireFly: SuperSpeed USB3
  • SureDrive Single driven media pressure roller
  • ClearView Innovative Dual LED lighting
  • WinSync Optimised Windows driver technology
  • ScanOnce Efficient scanning and copying workflow
